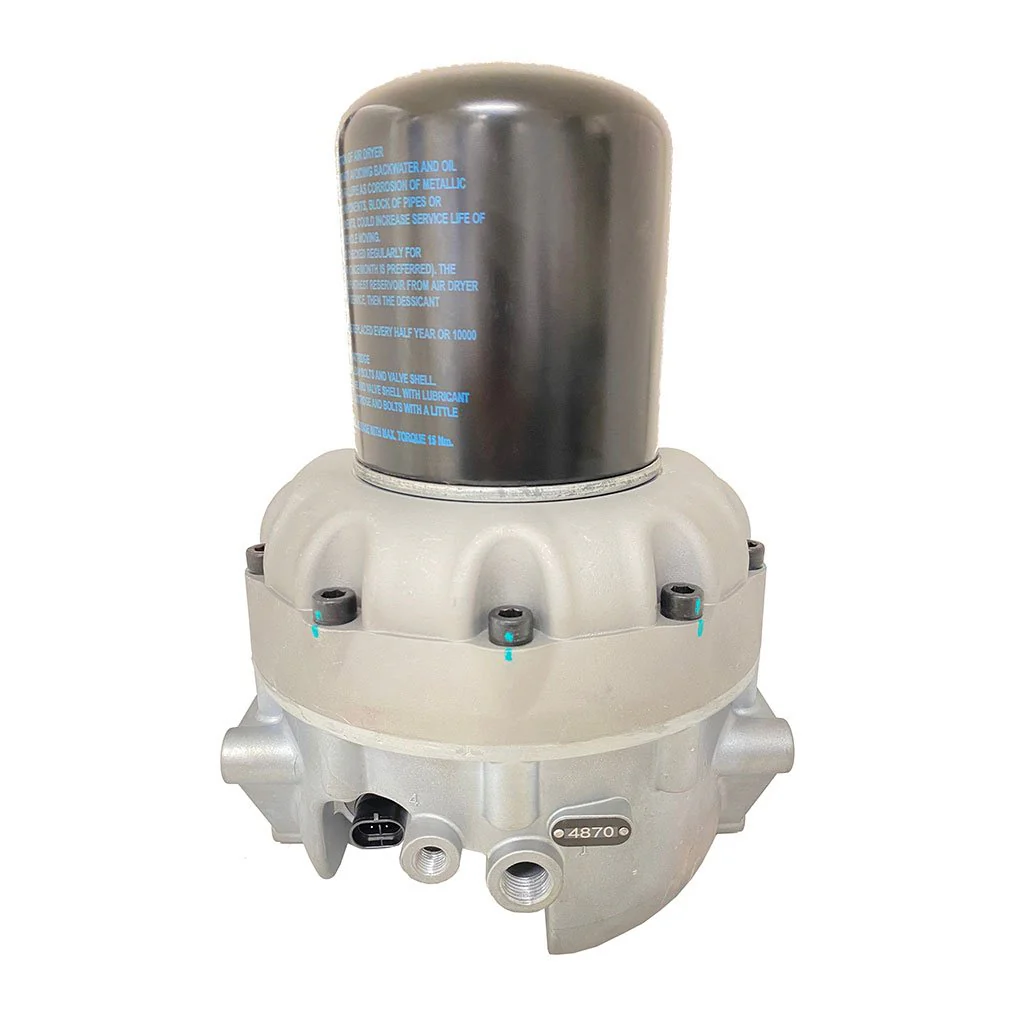

Fortpro Air Dryer System Saver 1200 Style Replacement for Wabco Air Dryer 4324711010 | F224870

Specifications:

• Part Type: Air Dryer
• Technical Specification: OE specification
• Cartridge type: Desiccant Cartridge and Oil separator
• Comments: Turbo-cut-off valve installed
• Cut-out pressure: 8.7 to 9.4 bar
• Max. operating pressure: 10.0 bar
• Opening pressure: 12.8 bar
• Port thread 21: 1/2" - 14 NPTF
• Port thread 4/23: 1/4" - 18 NPTF
• Temperature range: -40°C to +80°C
• Voltage: 12 V
• Calculated Volume (dm³): 20.95
• GTIN: 4057875173786
• Size (mm x mm x mm): 373 x 237 x 237
• UPC: 193133437956
• Weight (kg): 9.2
• Weight (lb): 20.28

CrossReference:

• FREIGHTLINER: TDAS4324711010
• KENWORTH: S432-471-101-0
• MERITOR WABCO: 4324711010
